High Frequency Desktop Laser Welding Machine 220V 50HZ For Jewelry / Gold

Name: High Frequency Desktop Laser Welding Machine 220V 50HZ For Jewelry Gold
Brand: Linxuanlaser
Price: 1 USD

Brand Name : Linxuanlaser

Model Number : LX-D4

Certification : CE FDA ISO

Place of Origin : Wuhan,China (Mainland)

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200units per month

Packaging Details : Standard exporting wooden package box

Laser Type : YAG Laser Welding Machine

Use for : Weld Jewelry Gold Sliver Platinum

Focal Spot Diameter : 0.1-2.0mm

Laser power : 200w

Laser wavelength : 1064nm Laser Welding Wire

Power supply : 220V 10% /50Hz

Dimensions : 1850mmx700mmx1750mm

Contact Now

High Frequency Desktop Led Electrode Plasma Laser Welder Machine

Introduction

This laser welder uses galvanometer scanning method, features high welding speed, high precision and good light beam mode, and is suitable for precision laser spot welding of various parts. During single spot welding, the working efficiency is 4-10 times higher than common laser spot welding because the idle stroke positioning time is significantly reduced. The scanning laser welder consists of YAG solid laser, laser power supply, optical scanning system, 3D adjustable work bench, industrial PC system, cooling system, laser indication system and operating cabinet.This welder provides dedicated laser welding software based on Windows platform. The welding spots or graphs can be imported and edited in the dedicated software, or edited in other software such as AutoCAD and CorelDraw and then processed in the dedicated software. This welder features stable quality, convenient operation and easy maintenance.

Application

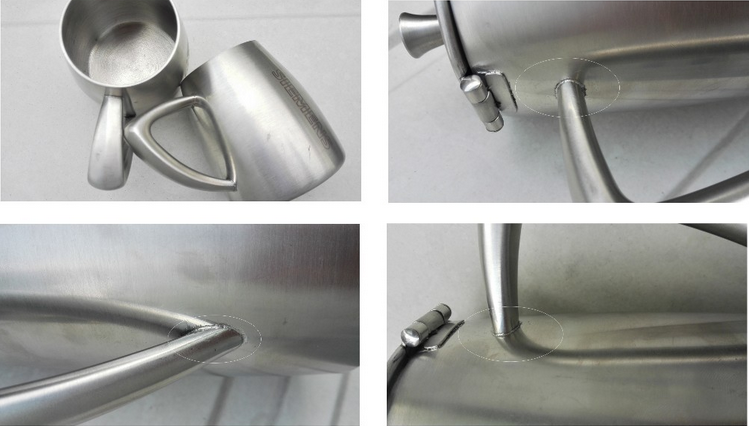

This welder is mainly used in highly efficient laser spot welding or seal welding of mobile phone shielding case, mobile phone metal shell, capacitor metal shell, metal shielding grid in computer, shaver blade, electronic connector and other electronic products.

Techinical Parameters

Model	LX-D4
Laser type	Nd:YAG
Laser wavelength	1064nm
Maximum laser power	100W/200W
Pulse width	≤20ms
Pulse frequency	≤50Hz
Spot welding speed	≤15 spots/s
Size of light spot	0.2-3.0mm
Adjusting range of light spot	0.1-0.3mm
Maximum positioning speed	≤7000mm/s
Resolution	0.001mm
Repeating precision	0.002mm
Cooling	Water cooling
Master unit dimensions	16008001500mm
