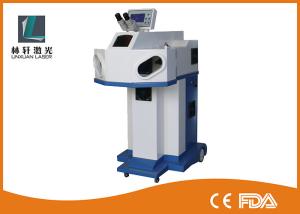

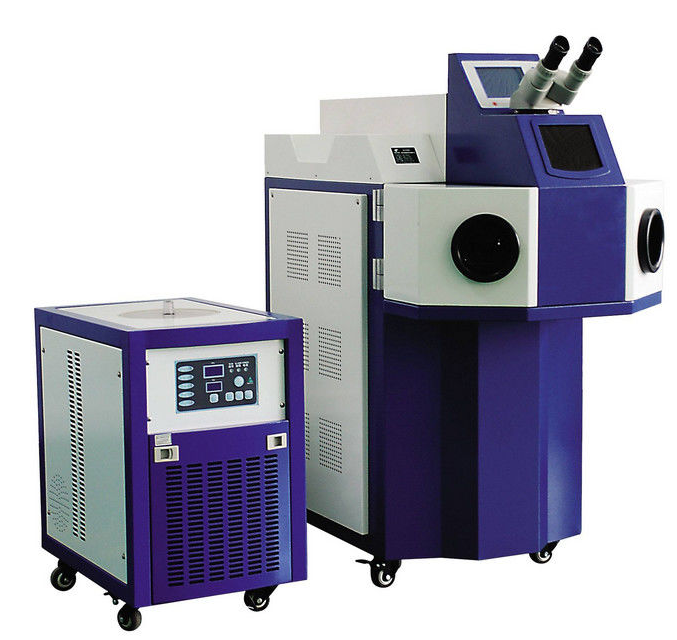

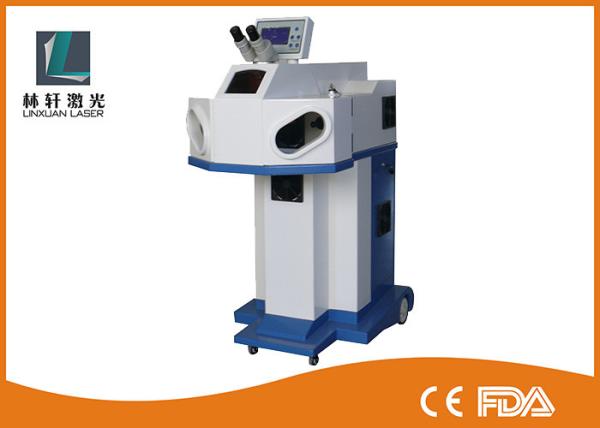

200W High Precision YAG Jewelry Laser Spot Welding Machine for Gold and silver
Desription:
1. Ceramic converging cavity made in UK: corrosion resistant and high temperature resistant, with 8-10 years service life. The life of xenon lamp bears more than 8 million times flashing.
2. Most advanced light shielding system can eliminate the irritation to eyes by laser during working.
3. The laser head can rotate for 360°, lift up and down, move left and right, go forward and backward .
4. The parameters are controlled by intelligent remote controller, which is simple and convenient for the operator.
5. The work bench can be lifted, and moved in three dimensions.
6. The size of light spot can be adjusted accordingly and automatically.
Application of Jewelry Laser Welding Machine
This Laser Welding Machine is designed to weld the Jewelries, like gold, sliver, platinum, brass, aluminum-magnesium alloy, titanium, etc.
Technical Parameters
| Parameter | Description |
| Model No. | Jewelry Laser Welder CY-W150/CY-W200 |
| Laser source | Nd3+: YAG |
| Laser wavelength | 1064nm |
| Max.Laser power | 150W/200W |
| Single-pulse energy | 60J/80J |
| Pulse width | 0.2-20ms |
| Frequency range | 0-50Hz |
| Welding pool diameter | 0.3-1mm |
| Facula diameter | 0.1-3.0mm |
| Observing system | Mircoscope |
| Chamber illumination | LED lamps |
| Paramters memorization | 10 groups |
| Protection alert | Flow Alert |
| Language display | Chinese/English |
| Shield gas supply | One Line |
| Cooling | Water cooling |
| Power consumption | 5KW/6KW |
| Power supply of laser | 220V /50HZ |
| Power supply of chiller | 220V/50HZ, 1HP |
| Welding chamber dimensions | 300mm*450mm*150mm (L*W*H) |
| Machine dimensions | 920mm*560mm*1220mm (L*W*H) |
| Running environment | 5℃-30℃ 5%-75% humidity |
| Net weight | 130kg(welder)+50kg(chiller) |
