YAG 500w Mold Laser Welding Machine For Module Isolation / Hermetic Sealing

Wuhan Linxuan Laser Co., Ltd
Contact Now

YAG 500w Mold Laser Welding Machine For Module Isolation / Hermetic Sealing

Brand Name : LinxuanLaser

Model Number : LX-D2

Certification : CE FDA ISO

Place of Origin : Wuhan,China (Mainland)

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150units per month

Packaging Details : Standard exporting wooden package box

Laser Type : fiber or YAG

Condition : new

Single Pulse Energy : 100J~130J

Usage : Metal Welding

Wavelength : 1064nm

Power : 400W 500W

Dimensions : 1450*800*1100mm

Contact Now

500w Mold Laser Welding Machine For Module Isolation And Hermetic Sealing

Introduction

Adopting the Pulsed xenon lamp-pumped Nd:YAG,1064nm infrared laser of the laser crystal output,arbitrary waveform real-time control of laser power feedback technology,the Laser welder system of our company ensures that the laser power waveform in working condition with good stability and reproducibility. Products of laser power from 25W to 500W, covering in small, large, power system, basically meet the demand for precision welder of various industries. Mainly for the welder of thin-walled materials and precision parts our products can realize spot welder, butt welder, stitch welder and seal welder. With features of depth width ratio, small weld width ,small heat-affected zone , small deformation, high welder speed, smooth weld, beautiful appearance, high welder quality, no pores, size-small focal spot, as well as precise positioning , WF series optical fiber laser welder machine can be accurately controlled ,and easily realize automatic optical fiber transmission

Applications

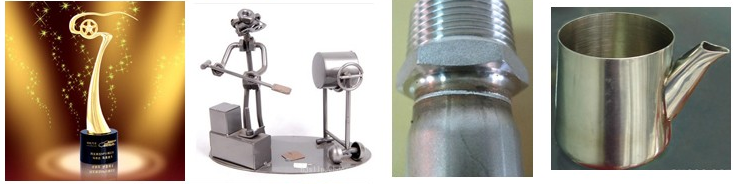

It is widely used in aerospace, sports goods, jewelry, medical, instrumentation, electronics, machinery and molding and auto industry. Especially in repairing jewelry, watch hairspring, dental, kinescope and etc

Characteristic

1. Laser beam is delivered by the fiber and it is more flexible. It also can combine with robotic to fulfull customize workpiece. And automation is available.
2. 6 fibers delivery can be optional and energy share or time share is available.
3. CCD coaxial monitor system, it can display and monitor every working station real time.
4. It can set max.64 sections of waveshape. And all the waveshapes can be called from the outside. Waveshape switching while welding. It can be suitable for various complicated welding demands. The laser output power feedback or current feedback can be option part.


Parameter

Model LX-D2 LX-D2
Wavelength 1064nm
Pulse width 0.5ms-20ms
Single pulse energy 70J 100J
Max. output power 400W 500W
Spot size 0.2mm~1.5mm
Welding depth ≤1mm ≤1.5mm
Frequency 1Hz-150Hz
Power consumption ≤12KW ≤16KW
Input power 380V/ tri-phase /50Hz/40A
