300w Space specific curve fiber laser cutting machines 6 axis fiber cutter machine
Description
Fiber Laser Cutter adopts the most sophisticated Germany IPG laser and double driver, combining owned design honey-comb machine tool and high-strength wilding bed, which is particularly suitable for stainless steel, alloy steel, titanium and other metal materials' precision cutting. It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Product Features
1. Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2. Flexibility and precision cutting of simple or complex parts
3. Adopts imported world brand fiber laser/Life time over 100,000hrs
4. Imported servo motor and gearing system ensure precision cutting
5. High quality cut with no extra finishing required
6. Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7. Non contact cut which means no marks or contamination of the material
8. Ability to cut virtually any sheet metal.
Application
Fiber laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Specifications
| Model | LX-E1-500 | LX-E2-1000 |
| Output power of laser source | 500W | 1000W |
| Cutting area (L*W) | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max. cutting speed | 36m/min | 40m/min |
| Max. positioning speed | 140m/min |
| Platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling | water cooling |
| Laser wavelength | 1070nm |
| Min. cutting gap | ≤0.1mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-8mm | 0.2-12mm |
| Drive model | Imported servo motor |
| Voltage | 380V,50/60Hz |
| Temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 2950Kgs |
| Outer dimension | 4350mm x 2280mm x 1500mm |
| Total protection level of power supply | IP54 |

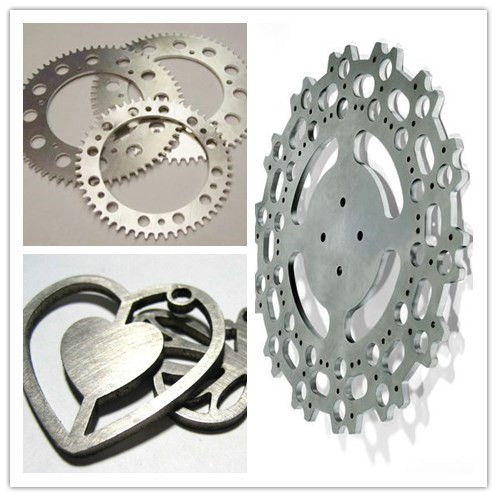

Cutting Samples
Packaging and delivery
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 20-25 days after received your payment.
