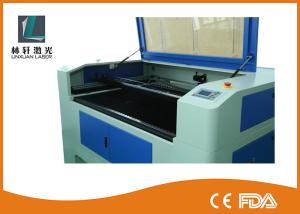

Auto Feeding Garment Water Cooling CO2 Laser Cutting Machine For Trademark / Embroider
Features
1. The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.
2. The main parts of the electrical line adopts imported materials, the mainly controlled CMOS chip adopts double face CPU.
3. New-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type.Usage age is more than 10000 hours.
4. Red dot position system is added in standard configuration, contributing to simple and precise working position.
5. Perfect after-sale service and high quality make sure customer use machine well.
Application
Applicable Industries: Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
Applicable Materials: Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .
.
Machine specification
| Model | LX-1060 | LX-6040 | LX-1390 | LX-1610/1612/1325 |
| Laser | CO2 glass sealed laser tube or metallic sealed laser tube |
| Laser power | 40W/60W/80W | 60W/80W/100W/120W/150W |
| Work platform size | 1000x600mm |600×400mm | 1300×900mm | 1600x1000mm/1200mm | 1300x2500mm |
| Engraving speed | ≤1000mm/s |
| Cutting speed | ≤500mm/s |
| Worktable | honey-comb or aluminum knife optional |
| Precision of positioning | ≤±0.025mm |
| Working temperature | 5-30 °C degree |
| Control System | RDCAM DSP Control system |
| SoftWare
| Laser Cut software
PLT,BMP,DXF,DST,TIF format supported
CorelDraw, AutoCAD Software Compatible |
| Transmission | Belt transmission (Standard)
Or ball screw transmission optional for extra cost |
| Linear Rail | Taiwan HIWIN linear rail |
| Motor type: | Japan Stepper motor |
| DPI | 2500 |
| Recommended spare parts | Laser tube, Focal lens, Reflection Mirror |
| Power supply | 220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional |
| Machine dimension (mm) | 1600*1100*1300 | 1600*800*1050 | 1950*1470*1300 | 2280*1730*1180 |
| G.W | 230KG | 260KG | 470KG | 550KGS |
Sample show
Packaging & Delivery
1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
